量測電位計:1~10KΩ

　　工作電壓：16-30 VDC

　　輸出信號：0-10 VDC

　　適合于任意型號之電子尺（4-pin接頭式）

　　Special features

　　?interface module for TLH and

　　LWH position transducers

　　?sensor proximity in the plug

　　connection

　　?interference-free signal

　　transmission

　　?standardized output signals

　　0…10 V

　　±…10 V

　　0…20 mA

　　4…20 mA

　　?excellent linearity

　　?extremely low temperature drift

　　30 ppm/K(typical value)

　　?zero point and range optionally

　　adjustable or fixed

　　The signal conditioner supplies

　　the position transducer with a

　　highly stable,constant voltage.

　　The wiper signal is picked off

　　without load via a high-resistance

　　input stage and transformed into

　　a displacement-proportional

　　standardized output signal.

　　The excellent linearity,low tem-

　　perature drift and sensor-proximity

　　of the signal conditioning process

　　ensure full utilization of the out-

　　standing benefits of the position

　　transducers,guaranteeing

　　reliable,interference-free

　　transmission of signals over long

　　distances.

　　In the adjustable models,the

　　zero point and range can be

　　adjusted within wide limits using

　　spindle trimmers.This permits

　　standardized output signals to

　　be adjusted even if the maximum

　　path of the transducer is not

　　completely utilized.

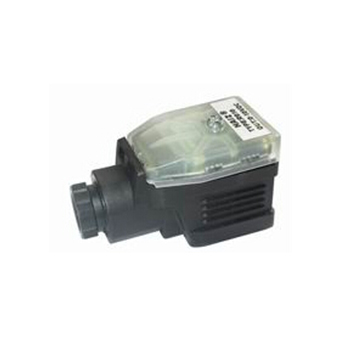

　　The electronic circuitry is inte-

　　grated into a socket to fit the

　　DIN 43650 appliance plug.A

　　wide range of operating voltages

　　can be supplied by an unstabi-

　　lized direct voltage source.

　　Selected SMD components

　　with a wide temperature range

　　guarantee maximum operating

　　reliability even under extreme

　　environmental conditions.

　　The MUW is connected by

　　means of a four-pole terminal

　　strip.It is possible to orient the

　　connecting cable as required by

　　turning the housing insert in 90°

　　steps.

　　Mechanical Data

　　Dimensions see drawing

　　Protection class IP 65(DIN 400 50/IEC 529)

　　Screw-type terminals 0.5 mm2

　　Recommended cable

　　dia.4-10 mm 3-or 4-core twisted with protective braiding

　　Weight appr.75 g

　　Electrical Data

　　Operating voltage 18…30 VDC

　　Input resistance>10 M?

　　Reverse voltage protection

　　integrated

　　Current consumption max.35 mA

　　Internal reference voltage for the

　　position transducer,

　　highly stable and short circuit-proof>10 VDC

　　Permissible connection resistance

　　of the position transducer≥700?

　　Adjustment rangeZero point 10%

　　Gain 1…2

　　Linearity 0.01(typical)%

　　Temperature coefficient*30(typical)ppm/K

　　Temperature range-25...+70°C

　　*The TC applies for current and voltage outputs.If,at current outputs,the voltage is picked off at

　　the load resistor,the TC of the resistor must also be taken into consideration.

　　Connection diagram
