MS拉繩位移傳感器

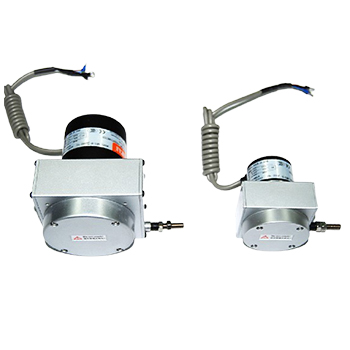

拉繩位移傳感器又稱拉繩傳感器、拉繩傳感器、拉繩電子尺、拉繩編碼器。拉繩位移傳感器是直線位移傳感器在結構上的精巧構成,充分結合了角度傳感器和直線位移傳感器的優點,成為一款安裝尺寸小、結構緊湊、測量行程大、精度高的傳感器,行程從幾百毫米至十幾米不等
MPS-S-P型為小型號增量型方波(AB相或ABZ相)輸出型,測量行程長(100~1200mm),最大往復速度為1000mm/s,精度為±0.05%FS,解析度為:1mm,0.5mm,0.2mm,0.1mm,0.04mm。
MPS-M-P型為中型號增量型方波(AB相或ABZ相)輸出型,測量行程長我1500~4000mm,最大往復速度為1000mm/s,在1500~2000mm行程時精度為±0.03%S、在2500~4000mm行程時精度為±0.05%FS,解析度為:1mm,0.5mm,0.2mm,0.1mm,0.05mm(為500密碼,1000mm及2000mm行程所提供)。
MPS-L-P型為大型號增量型方波(AB相或ABZ相)輸出型,測量行程長我4500~100000mm,最大往復速度為1000mm/s,精度為±0.05%FS,解析度為:1mm,0.5mm,其它則根據要求做。
Detection system檢測方式incremental增量型
Output wave輸出波形Square Wave方波
Effective Stroke(mm)量測行程(200mm~5000mm)之間量程任意可選
Resolution(mm/Pulse)解析1,0.5,0.2,0.1,0.05(0.05mm only for stroke:500,1000,2000mm)
Accuracy精度(strok500~1000mm):±0.03%FS,±1count;(strok2000~5000mm):±0.05%FS,±1count
Output phase輸出相AB phase or ABZ phase
Electronics電路特性Voltage電壓型,Open Collector電流型,Push Pull推挽式or Line Driver差動式
Power supply工作電壓DC12V-24Vdc,DC5V fixed
Current Consumption消耗電流≤30mA
Output Capacity輸出容量Sync.current:20mA,Residual voltage:0.5V or less
Max Response最大響應頻率10KHz~50KHz
Phase different相位差A(yù),B phase different 90℃±45(T/±T/8),Z phase T±T/2
Wave Form Rise/Fall波形上下時間2us or less
ECHANICAL SPEC.
Measurement Wire線徑規格(stoke﹤3m)Diameter:0.6mm;SUS304 with fluorine-coated;Breaking load:16kg(stoke≥3m)Diameter:0.7mm;SUS304 with fluorine-coated;Breaking load:23kg
Starting torque(at25℃)起動轉軸≥600g
Max.Measuring Wire Velocity(go and back)最大往復速度1000mm/sec
Vibration震動10g(10±1500Hz)
Polarity極性保護against reverse protection(not with 5v)
Shock沖擊20g PER 11 ms
Weight重量﹤1000g
Starting torque on spring拉力(stroke﹤2m)max.600g;(stroke≥2m)max.900g
MECHANICAL SPEC.
Operating Temp工作溫度0℃~+70℃
Storage Temperature儲存溫度-20℃~+80℃
Life壽命Typical﹥1×106cyle
Protection保護等級IP65(only for encoder housing)
