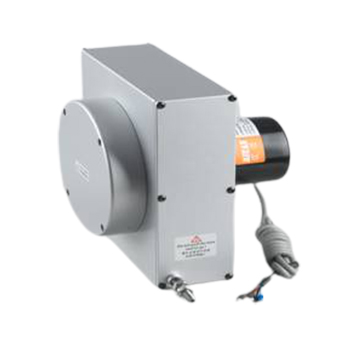

MS拉繩位移傳感器
拉繩位移傳感器是直線位移傳感器在結構上的精巧構成,充分結合了角度傳感器和直線位移傳感器的優點,成為一款安裝尺寸小、結構緊湊、測量行程大、精度高的傳感器,行程從幾百毫米至十幾米不等。
MPS-L-V型為大型號電壓信號(V1:0~5V DC,V2:0~10V DC)輸出型,測量行程長(4500~100000mm),最大往復速度為600mm/s,精度高(0.25~0.1%FS),重復性達±0.05%FS。
MPS-M-V型為中型號電壓信號(V1:0~5V DC,V2:0~10V DC)輸出型,測量行程長(1500~4000mm),最大往復速度為1000mm/s,精度高(0.3~0.1%FS),重復性達±0.05%FS。
MPS-S-V型為小型號電壓信號(V1:0~5V DC,V2:0~10V DC)輸出型,測量行程長(100~1200mm),最大往復速度為500mm/s,精度高(0.3~0.1%FS),重復性達±0.02%FS。
LECTRICAL SPEC.
Effective Stroke(mm)量測行程(500mm~20000mm)之間量程任意可選
Output Signal Mode輸出信號模式0~5Vdc or 0~10Vdc
Linearity線性度±0.3%FS(standard class);±0.15%FS(precision class)
Repeatability重復性±0.05%FS
Resolution解析Essentially infinite本質無窮
Measurement Wire線徑規格Diameter1mm SUS304 with fluorine-coated
Sensor傳感器Wire-winding and hybrid potentiometer繞線混合電位器
Starting force拉力≦2200g
Max.Measuring Wire Velocity(go and back)最大往復速度1000mm/sec
Weight重量≤1000g
MECHANICAL SPEC.
Power supply供應電壓10~24Vdc for 0-5V volt output,12-24Vdc or 0-10volt output
Power Current供應電流10mA max
Zero and Span Adjustment零度和滿度調節Please detailed product instruction booklet請見詳細產品說明書
ENVIRONMENTAL SPEC.
Operating Temp工作溫度0℃~+70℃
Storage Temperature儲存溫度-20℃~+80℃
Vibration震動10Hz to 2000Hz
Protection保護等級IP65(only for encoder housing)
